We focuses on intelligent energy storage services adopts advanced international energy storage technology to provide safe and reliable energy storage system containers and services for global users.
The energy storage battery Containers are built on a modular structure. We can customize them to match the capacity and power requirements of the client's needs. The energy storage systems for batteries are built on the standard container for sea freight starting at the kWh/kW (single container) up to MW/MWh (combining multiple containers). The containerized energy storage system permits quick installation, secure operation and is controlled by environmental conditions.
Energy storage systems (BESS) Containers are made for public buildings, neighborhoods, medium-sized to large-sized businesses, utility-scale storage systems, off-grid systems, electric mobility, and backup systems. Containers for the energy storage system allow you to store the energy generated through wind turbines, photovoltaics, or CHP. Because of its long duration of use, the containers for energy storage are also utilized for peak shaving, which reduces the power expense.
Key Features
-
Automotive Grade Cells-16 cell configuration
-
Integrated CAN bus RS485 BMS
-
LCD display shows battery information
-
Pre-configured with optimal parameters
-
No other LiFePO4 battery offers this funcationality, longevity and warranty at our price
-
Warranted for daily cycling
-
Optional Smart Heating Function Can work -40°C Degree
Application
-
Over charge detection function
-
Over discharge detection function
-
Over cyrrent detection function
-
Temperature protection function
-
Short circuit detection function
-
Balance function
-
Upper computer software monitor
-
LCD Screen optional
|

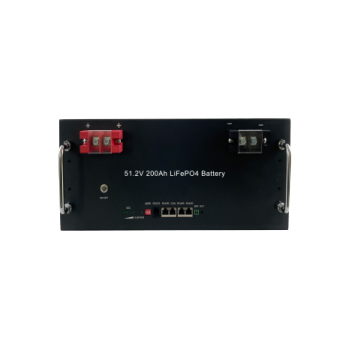

Battery Specification |
|
Model |
ESS-2560 |
ESS-5120 |
ESS-10240 |
|
VOLTAGE AND CAPACITY |
51.2V/50Ah |
51.2V/100Ah |
51.2V/200Ah |
|
Nominal voltage |
51.2V |
51.2V |
51.2V |
|
Nominal capacity @25°C* |
50Ah |
100Ah |
200Ah |
|
Nominal capacity @0°C* |
40Ah |
80Ah |
160Ah |
|
Nominal capacity @-20°C* |
25Ah |
50Ah |
100Ah |
|
Nominal energy @25°C* |
2560Wh |
5120Wh |
10240Wh |
|
*Discharge current≤1C |
|
CYCLE LIFE (capacity≥80% of nominal) |
|
100% DOD |
4,000 cycles |
|
80% DOD |
6,000 cycles |
|
50% DOD |
10,000 cycles |
|
DISCHARGE |
|
Maximum continuous discharge current |
50A |
100A |
200A |
|
Recommended continuous discharge current |
≤50A |
≤100A |
≤100A |
|
End of discharge voltage |
40V |
40V |
40V |
|
OPERATING CONDITIONS |
|
Operating temperature |
Discharge: -20°C to +50°C, Charge: +5°C to +50°C |
|
Storage temperature |
-25°C to 45°C |
|
Humidity (non-condensing) |
Max. 95% |
|
Protection class |
IP22 |
|
CHARGE |
|
Charge voltage |
58.4V |
|
Maximum charge current |
50A |
100A |
100A |
|
Recommended charge current |
≤50A |
≤100A |
≤100A |
|
OTHER |
|
Capable Parallel Quantity |
≤15 Modules |
|
Communication Port |
RS232 RS485 CAN |
|
BMS Connector |
Barrier Terminals /customized |
|
Dimensions (L*W*H) |
483*440*134 |
483*440*178 |
483*440*267 |
|
Weight |
28kg |
45kg |
85kg |
|
*When fully charged |
