Home Battery Storage: 48V 100Ah 5Kwh LiFePO4 household batteries for solar









Features







• High specific energy
• Easy to install
• Long cycle life
• Support parallel operation
• Environmental protection and no pollution
• Support deep custmozation





Specifications







Parameters
Product model	EVL-BOX3
Product specification	51.2V 100Ah
Nominal voltage	51.2V
Nominal capacity	100Ah
Cell type	LFP
Standard charge voltage	58.4V
Max charge current	100A
Discharge cut-off voltage	40V
Max discharge current	100A
Display	LCD
Communication interface	RS485, RS232, CAN (Optional)
Cycle life	≥4000Cycles（80%DOD）
Charge temperature range	0~65℃
Discharge temperature range	-20~65℃
Color	Black and white
Dimensions	600x400x220MM
Weight	±64Kg
Installation method	Wall mounted

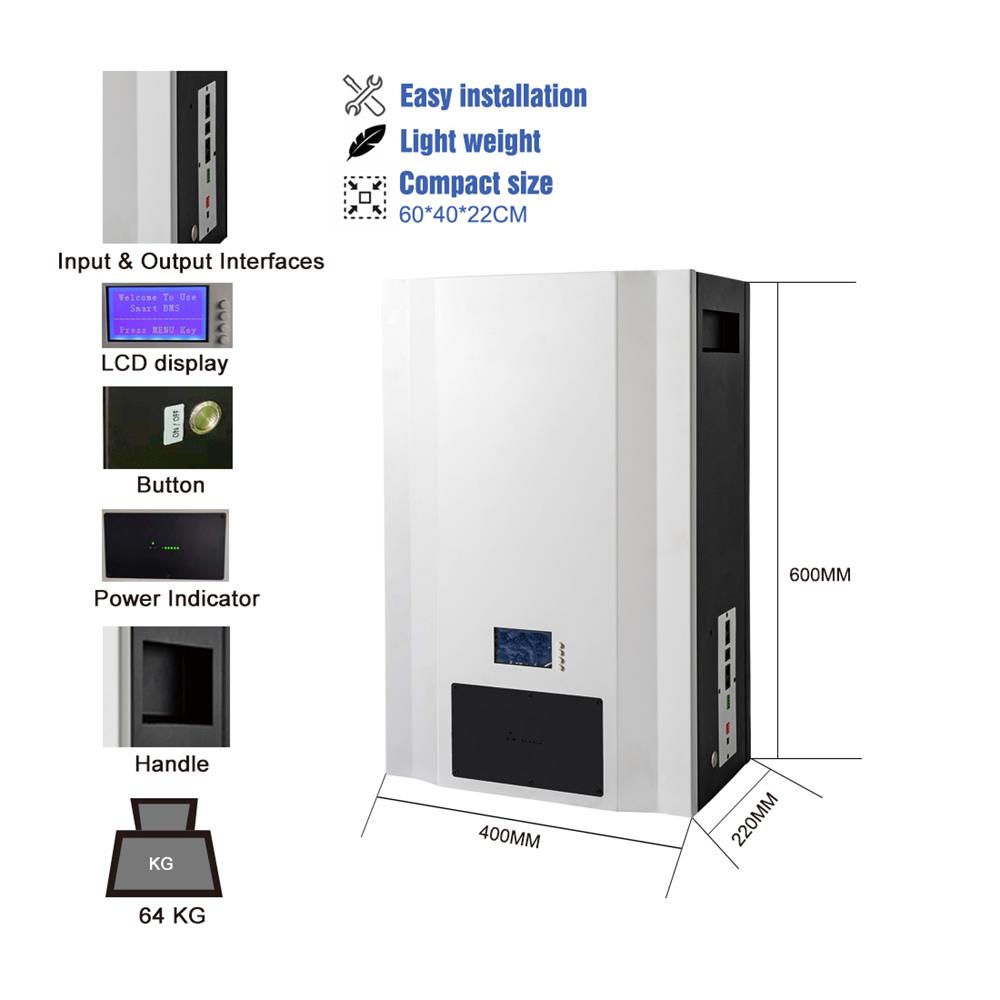

Details















Reliable Automotive Grade LiFePO4 Battery Cell



Higher energy density

Stable performance & greater power





Long Cyle Life



6000-8000times

10-15 years service time





Low Resistance & High Current



Low self-discharge rate & Efficient Charging





Match Multiple Brands Inverter



Simultaneous communication & docking with multiple brands inverter





Intelligent BMS Battery Protection



Effiectively avoiding overcharge, overdischarge, overcurrent, short-circuit







Good Safety Performance



100% safe, Extreme safety test
