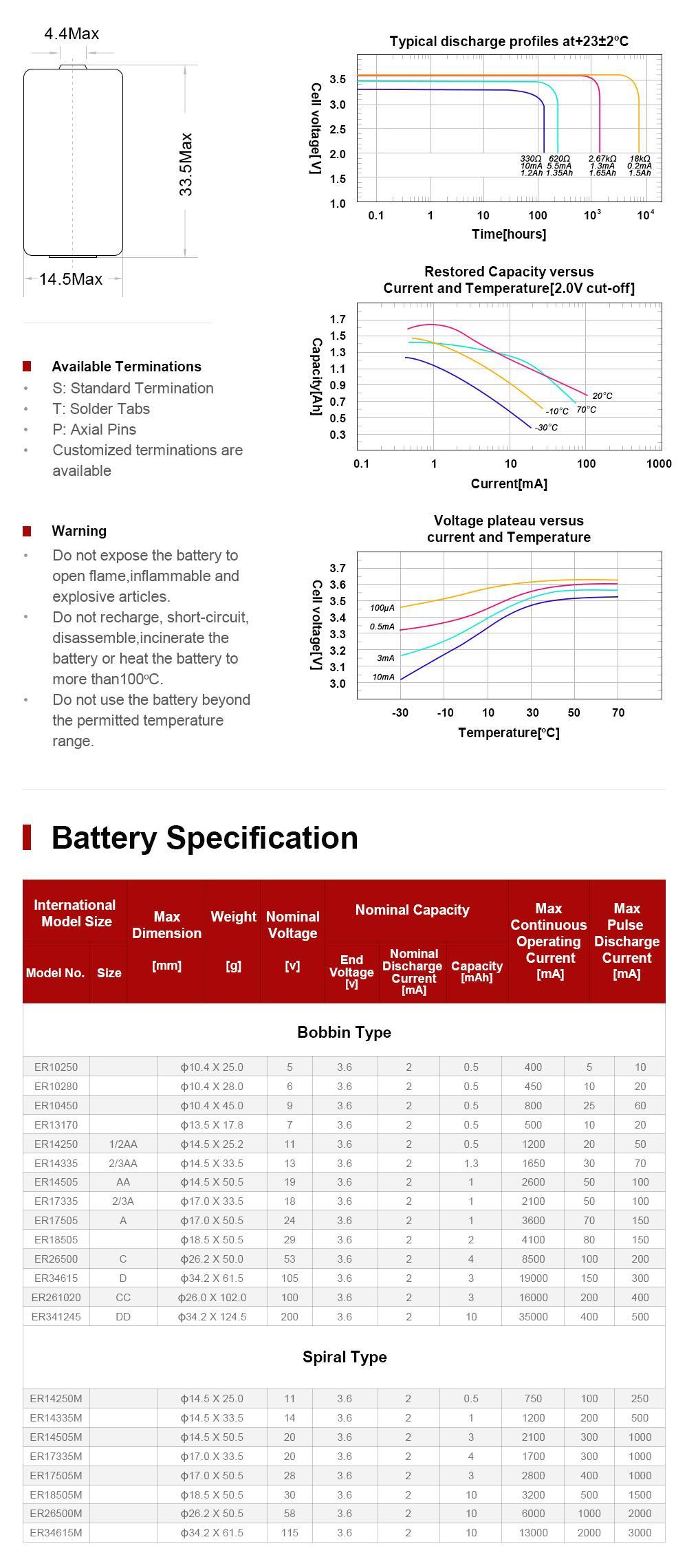

ER14335LI/SOCl₂ BOBBIN TYPE Product Characteristics: High Energy Density: Over 620wh/kg[highest among all the chemical batteries]； Open Circuit Voltage: 3.65V, operating voltage ranging from 3.3~3.6V； Wide Operating Temperature Range:
Description
ER14335 LI/SOCl₂ BOBBIN TYPE
Product Characteristics: High Energy Density: Over 620wh/kg[highest among all the chemical batteries]； Open Circuit Voltage: ≥3.65V, operating voltage ranging from 3.3~3.6V； Wide Operating Temperature Range: -55℃+85℃； Long Storage Life: 8-10 years[Under normal room Temperature]； Operation Characteristic: This series batteries are suitable to operate under long-term tiny； current. The batteries are possessing stable operating voltage and safe. Applications: IoT、Alarms and Security Systems、 Utility Meters/AMR&AMI、 Automotive Telematics、Storage and Tracking Devices、 Military Equipment、 R&D Instrument、 Sensor、 Oil Drilling
| Model: | ER14335 |
| Product type: | LI/SOCl₂ |
| Battery charging: | No |
| Maximum Profile Size（mm）: | φ14.5 X33.5 |
| Weight: | 13g |
| Nominal capacity（mAh）: | 1650 |
| Use temperature range: | -55℃~+85℃ |
| Nominal voltage（V）: | 3.6 |
| Discharge cut-off voltag（V）: | 2 |
| lsn（mA）: | 1.3 |
| Maximum continuous（mA）: | 30 |
| Maximum Pulse Dischar（mA）: | 70 |
