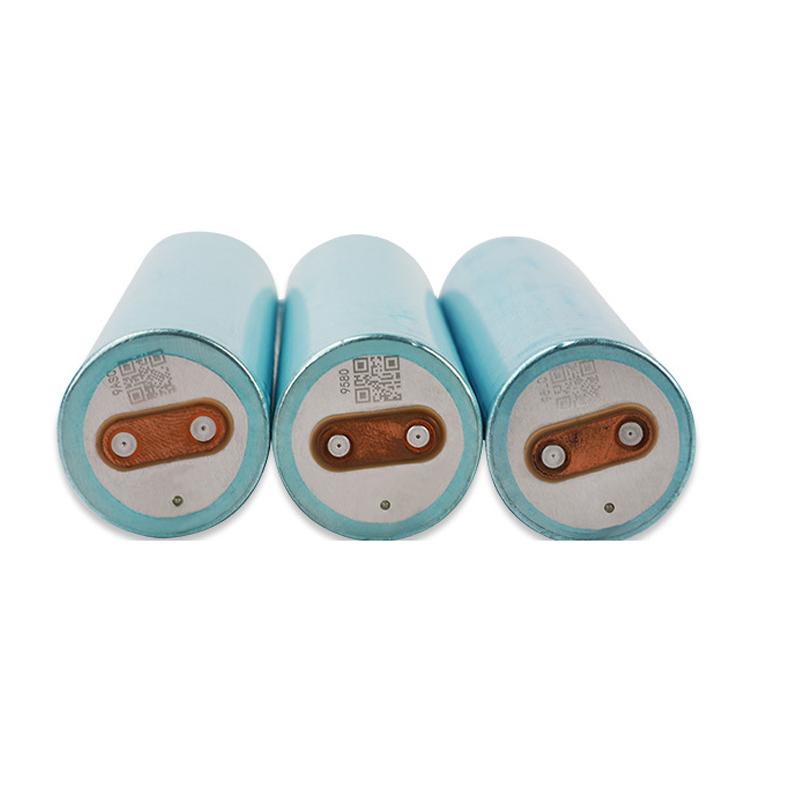

Spot trader of Gotion LFP Lithium-ion Battery Cells, Gotion 32135 15Ah 3.2V LiFePo4 cell IFR32135-15Ah.
Description
| Parameter | Specification | Condition |
| Dimension | 33.6mm(d) * 139.7mm(h) | |
| Weight | 268g | |
| Nominal Capacity | 1500mAh | |
| Nominal Voltage | 3.2V | |
| AC Resistance | 1.5mΩ<R<3mQ | 25℃±2℃ |
| DC Resistance | <8mΩ | 50%SOC,25℃±2℃ |
| Operating Temperature | Charge: -20～55℃ | |
| Discharge: -30～60℃ | ||
|
Regular charge(Slow charge) Current |
3A(0.2C) | Constant current |
|
Regular charge(Slow charge) Voltage |
3.65V | Constant voltage |
| maximum pulse discharge rate/C | 4500mA(3C) | 25℃ |
| Room Temperature Cycle Life | 2000times | 80%capacity; 25℃ |
1. Qualified for UN38.3/MSDS, RoHS, CE, TUV, UL with high safety
2. More than 5000 cycles under the designed working condition
3. Integral safety valve is used to enhance safety
4. High Energy Densit
