Details
CALB L194F130B 130Ah LiFePO4 3.2V battery suitable for electric vehicles (EVs), uninterruptible power supplies (UPS), recreational vehicles (RVs), and solar energy storage.
Description
| Parameter | Specification |
| Rated Capacity |
130Ah(1C Discharge) 133.2Ah(Standard Discharge) |
| Rated Voltage |
3.2V(1C Discharge) 3.22V(Standard Discharge) |
| Rated Energy |
416Wh(1C Discharge) 428.9Wh(Standard Discharge) |
| Cell Weight | 2.34±0.025kg |
|
Mass Energy Density (Standard Discharge) |
185Wh/kg (Standard Discharge) |
| Cell Volume |
1.08L (without terminal) |
|
Volume Energy Density (Standard Discharge) |
395Wh/L |
|
ACR (Alternating Current Resistance) |
＜0.3mΩ 20%SOC, Room Temperature, AC Impedance, 1000 Hz |
|
Temperature Range |
Charging Temperature: -20~55°C Discharging Temperature: -30~55°C Storage Temperature: -40~60°C |
| Fast Charging Time | ≤20 min(10~80% SOC) |
| Voltage Range |
2.5~3.65 V(0℃≤T≤55℃) 2.5~3.65 V(-30℃≤T＜0℃) |

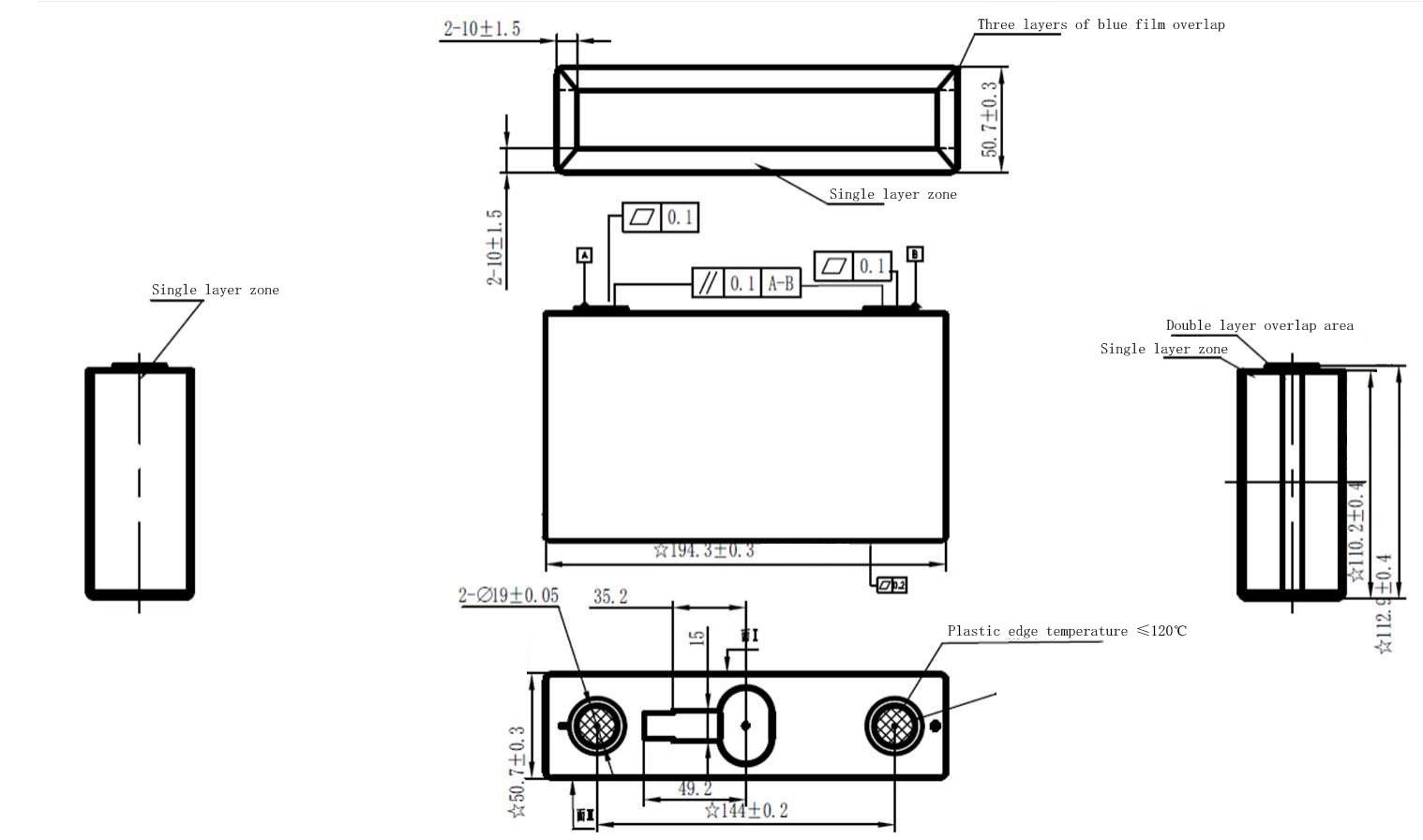

| Dimensions | (194.3±0.3)×(50.7±0.3)×(110.2±0.4)mm |
