Details

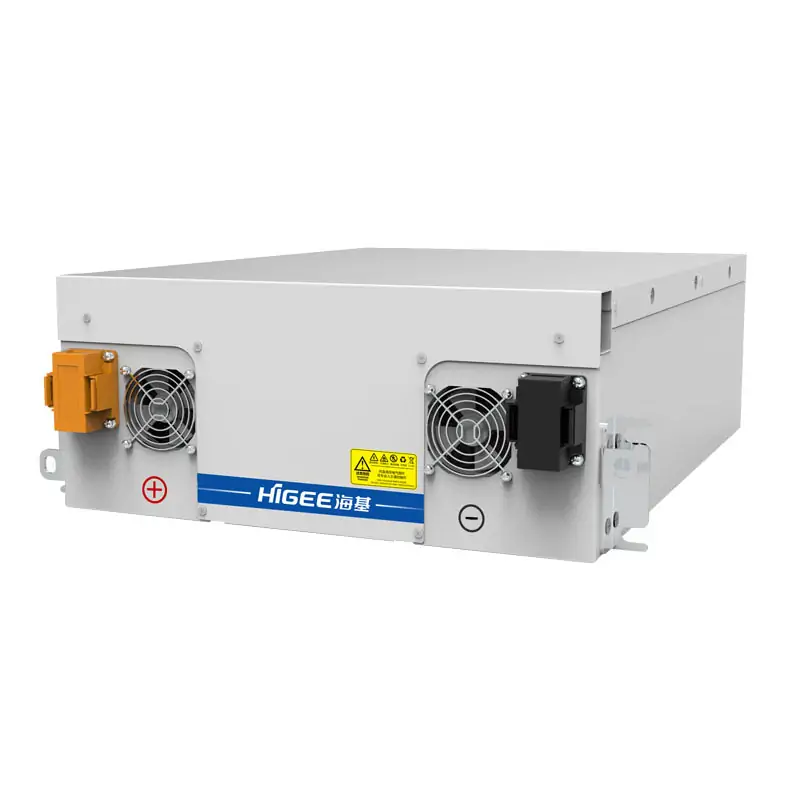

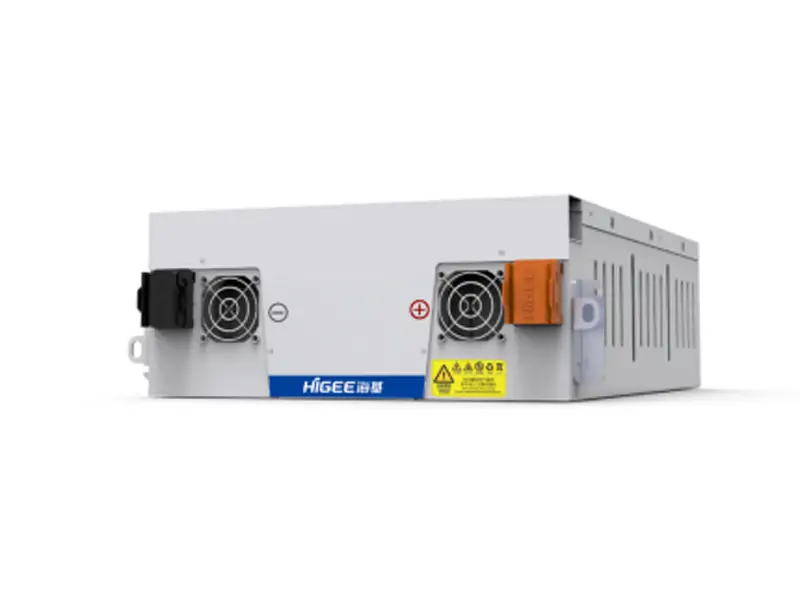

Description The 76120 LiFePO4 Battery Module consists of 24 single lifepo4 cell in series, has a nominal energy of 9.216kwh, a nominal voltage of 76.8V. The battery module is configured with the BMS acquisition module BMU, which is used to
Description
| Items | Parameters |
| Combination | 1P24S |
| Nominal capacity | 120Ah@1C,25℃ |
| Nominal voltage | 76.8V (24cells) |
| Operating voltage | 67.2~86.4V |
| Standard charging current | 120A(1C) |
| Instantaneous max. charge current | 150A (1.25C) @5S |
| Standard discharging current | 120A (1C) @25℃ |
| Instantaneous max. discharge current | 150A (1.25C) @5S |
| Weight | 86kg±1.5kg |
| Dimension | 527mm(W)*677mm(D)*202mm(H) |
| Energy | 9.216kWh |
| Overcurrent protection current | 144A@5S |
| IP class | IP21 |
| Operating temperature range | 20～50℃ |
| Storage temperature range | -40～50℃ |
| Humidity Storage | 5%～95% |
| Humidity operating | ≤85% |
