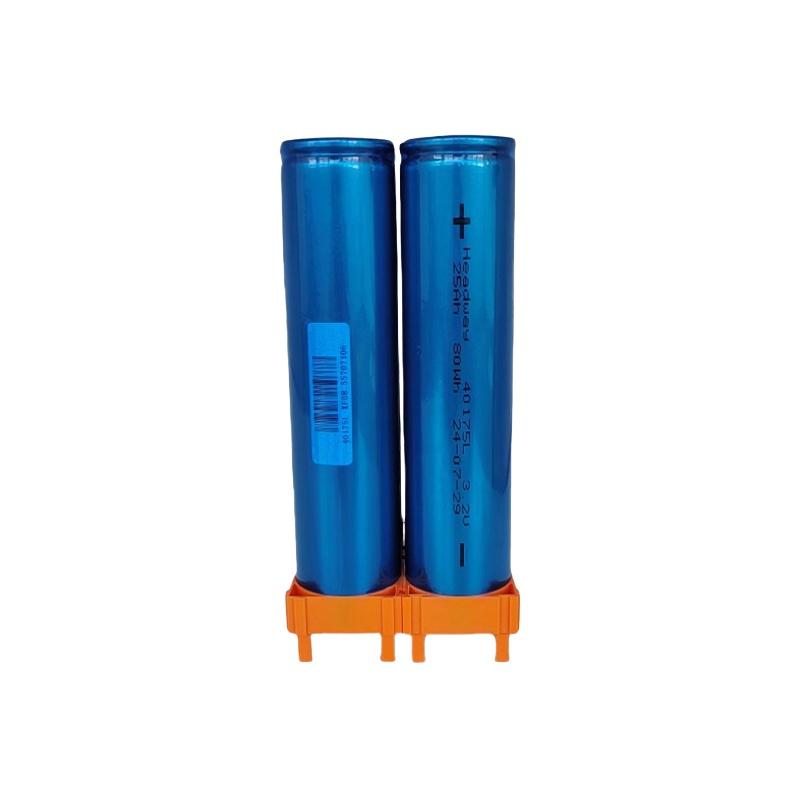

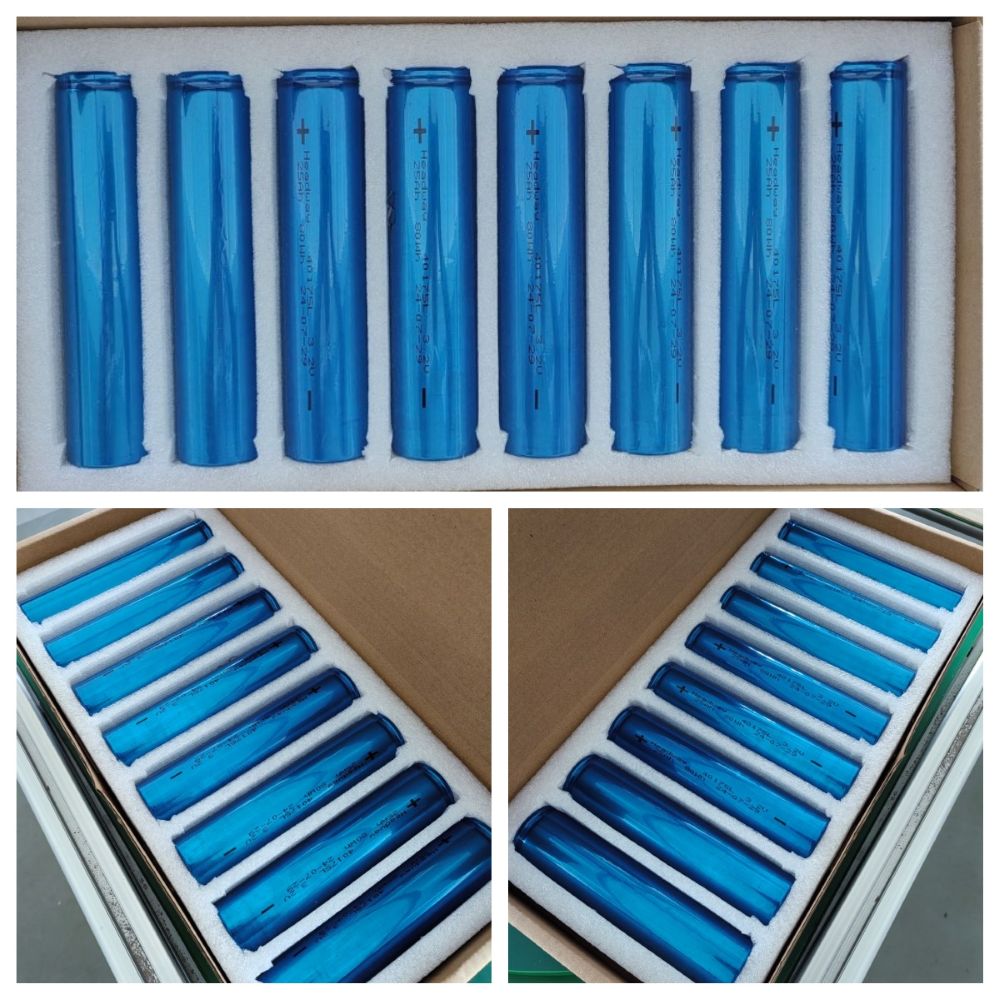

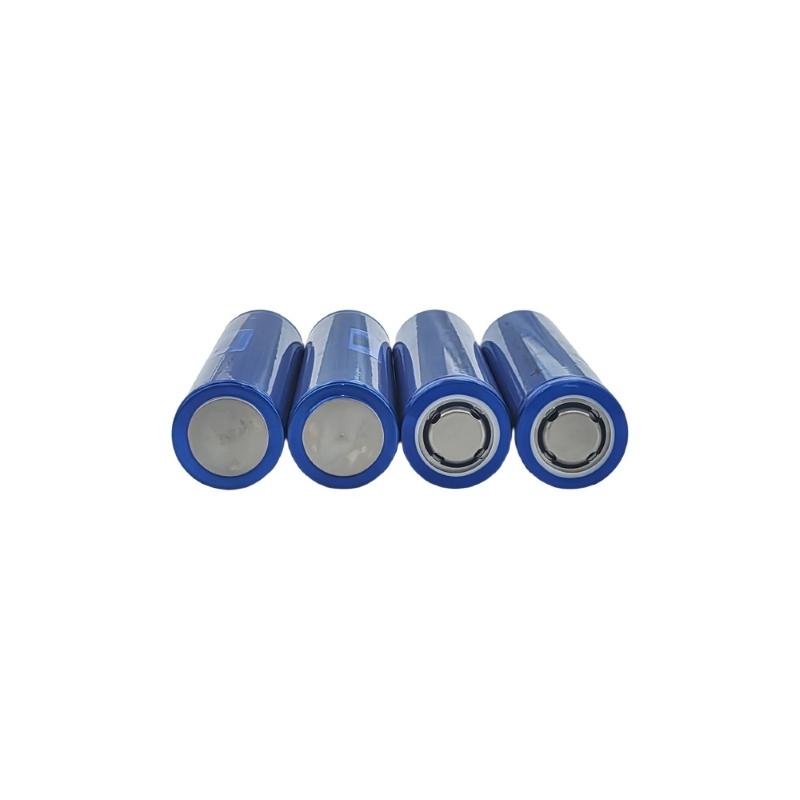

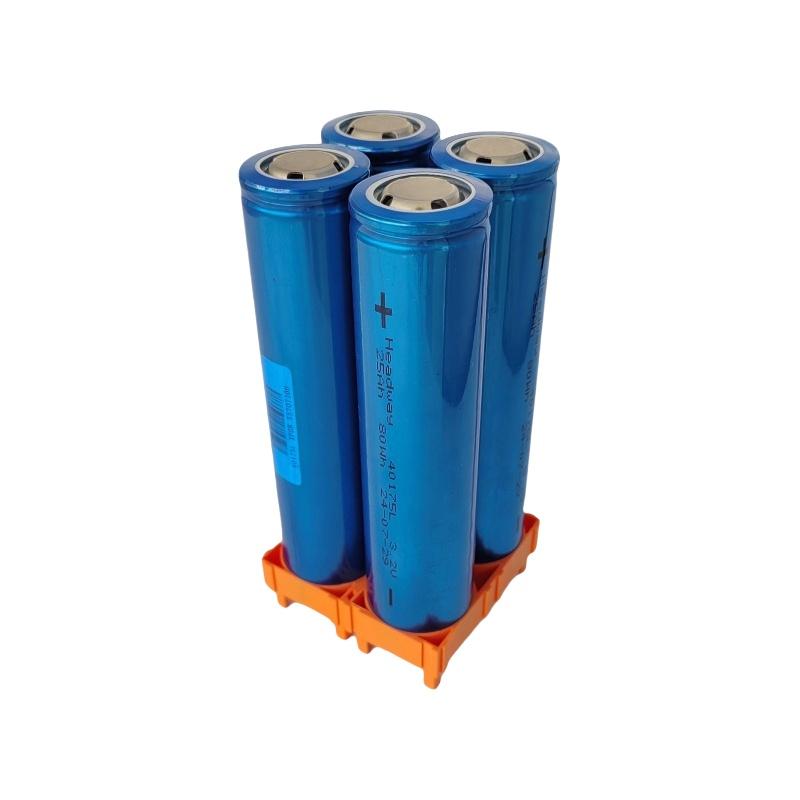

Headway 40175L,3.2V 25Ah cylindrical lithium battery suitable for household appliances, consumer electronics, electric bicycles/scooters, electric vehicles, electric wheelchairs, power systems, solar energy storage systems.
Description
| ITEM | SPECIFICATION |
| Nominal capacity | 25Ah @ 0.2C |
| Minimum capacity | 24.5Ah @ 0.2C |
| Nominal voltage | 3.2V |
| Max Charging voltage | 3.65 ±0.05 V |
| Discharge ending voltage | 2.5 ±0.05 V |
| Charge current | Standard charge: 0.5CMax charge: 2C when T≥10 OCMax charge: 1C when 10 OC≥T≥0 OCMax charge: 0. 1C when 0 OC≥T≥-10 OC |
| Discharge current | Standard discharge: 1CMax continuously discharge: 3CMax instant discharge: 6C |
| Recommended charge and discharge cell surface temperature | Charge: 0～45 OCDischarge: -20～60 OC |
| Maximum allowable charge anddischarge cell surfacetemperature. Charging anddischarging at these conditions willshorten cell cycle life. | Charge: 60 OCDischarge: 75 OC |
| Humidity range | 0～90%RH (none condensing) |
| Internal resistance | ≤4mOhm (AC Impedance, 1000HZ) |
| Cell dimension | Height: 176.0 mm MaxDiameter: 41.0mm Max |
| Weight | ~520g |
| Energy density | 152Wh/kg |
| ITEM | CRITERION | |
| Discharge ratecapability | discharge capacity at 1C | ≥24Ah |
| discharge capacity at 3C | ≥23.2Ah | |
| Cycle life | discharge capacity of 3000th cycle @100%DOD | ≥20Ah |
| High-Lowtemperaturedischargeperformance(0.5Cdischarge) | discharge capacity at -10℃ | ≥20Ah |
| discharge capacity at 0℃ | ≥18.7Ah | |
| discharge capacity at 60℃ | ≥24.5Ah | |
| Storageperformance | residual capacity after 28d storage | ≥24Ah |
| recover capacity after 28d storage | ≥24.5Ah | |
To prevent the possibility of the cell from leaking, heating, explosion, please observe the following precautions:
Don’t immerse the cell in water;
Don’t use and leave the cell near a heat source such as fire or heater; When charging, use a cell charger specifically for that purpose;
Don’t reverse the positive and negative terminals; Don’t discard the cell in fire or heater;
Don’t connect the cell to an electrical outlet directly; Don’t discard the cell in fire or heater;
Don’t connect the positive and negative terminal directly with metal objects;
Don’t transport and store the cell together with metal objects such as necklaces, hairpins; Don’t directly solder the cell;
Don’t pierce the cell with a nail or other sharp object;
Don’t leave the cell with low SOC for long time, it should keep the cell with around 50% for long term storage (less than 6 months). Should charge the cell to 50% SOC after each 6 months.
