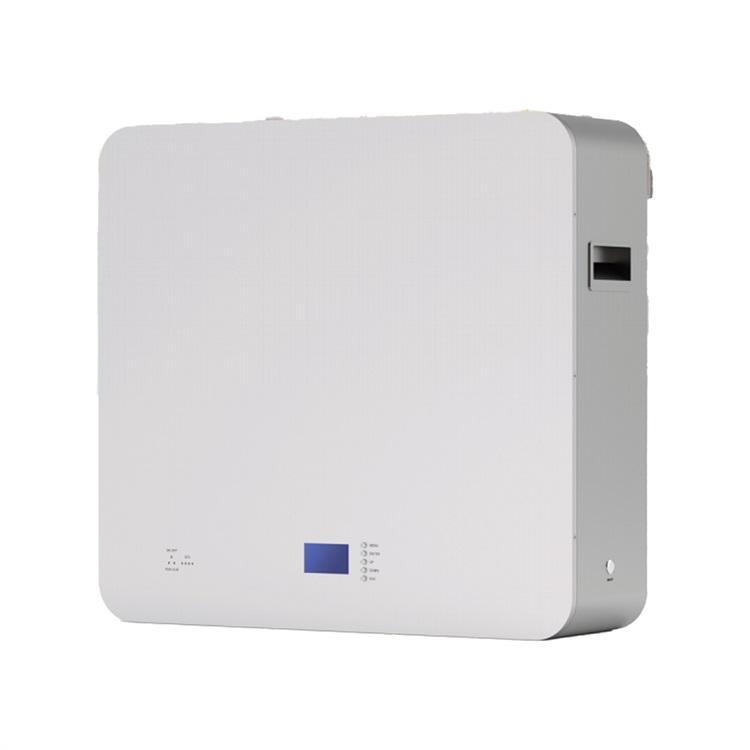

10 kwh wall mounted LiFePO4 solar battery for home energy storage

Details

LiFePO4 10kwh Battery Product Description Lithium battery systems are widely used in residential energy storage systems, such as solar energy storage systems and UPS. The power wall LiFeP04 battery pack adopts the international advanced lif

Details

Description

LiFePO4 10kwh Battery Product Description

Lithium battery systems are widely used in residential energy storage systems, such as solar energy storage systems and UPS. The power wall LiFeP04 battery pack adopts the international advanced lifepo4 battery application technology and BMS control technology.

Smart Each module is equipped with an independent BMS	Easy Installation Just Plug & Play
Safe Safe lithium iron phosphate battery cell	Certifications CE/EC/UN38.3/MSDS.
Modular Modular expansion	Longer Lifetime 6000 cycles, 15 years design life

Specifications

Items	Parameters
Battery Type	LiFePO4(LFP)
Nominal Voltage	51.2V
Nominal Energy	10KWH
Design Capacity	200AH
Design Years	15 Years
Size	673618193mm
Weight	89kg
Cycle Life	≥6000@80% DOD
Operating Voltage Range	40V-58.4V
Charging Voltage	DC 58.4V
Charge/Discharge Current(A)	Same Port 100A
Internal Resistance	≤30mΩ
Self-Consumption	≤2W
Rated Voltage	51.2V
Balance Current	30-65(MA)
Communication Method	CAN/RS485/RS232
Information Storage	500 Strip
Limiting	10/20A(Optional)
Operating Temperature	-10℃~50℃
Storage Temperature	10℃~50℃
Humidity	15%~75%
Warranty	5 years

Product Size

battery dimensions

Product Interface

battery interface

Parallel Connection Of Batteries

Connect the positive pole and positive pole in parallel, and the negative pole and negative pole in parallel, as shown in the figure below

Parallel Connection Of Batteries

Solution Diagram

Battery Operation Instruction

•Charging

Charging current: Cannot surpass the biggest charging current which in this specification book stipulated.
Charging voltage: Does not have to surpass the highest amount which in this specification book stipulated to decide the voltage.
Charge temperature: The battery must carry on the charge in the ambient temperature scope which this specification book stipulated.
Uses the constant electric current and the constant voltage way charge, the prohibition reverse charges. If the battery positive electrode and the cathode meet instead, can damage the battery.

•Discharging current

The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the oversized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.

•Electric discharge temperature

The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.

•Over-discharges

After the short time excessively discharges charges immediately cannot affect the use, but the long time excessively discharges can cause the battery the performance, battery function losing.
The battery long-term has not used, has the possibility to be able to be at because of its automatic flash over characteristic certain excessively discharges the condition, for prevented excessively discharges the occurrence, the battery should maintain the certain electric quantity.

• Battery storage

The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, suggested you should carry on additional charge to the battery.

•Warranty

The period of warranty is 5 years from the date of shipment. GENIXGREEN guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customers abuse and misuse.
