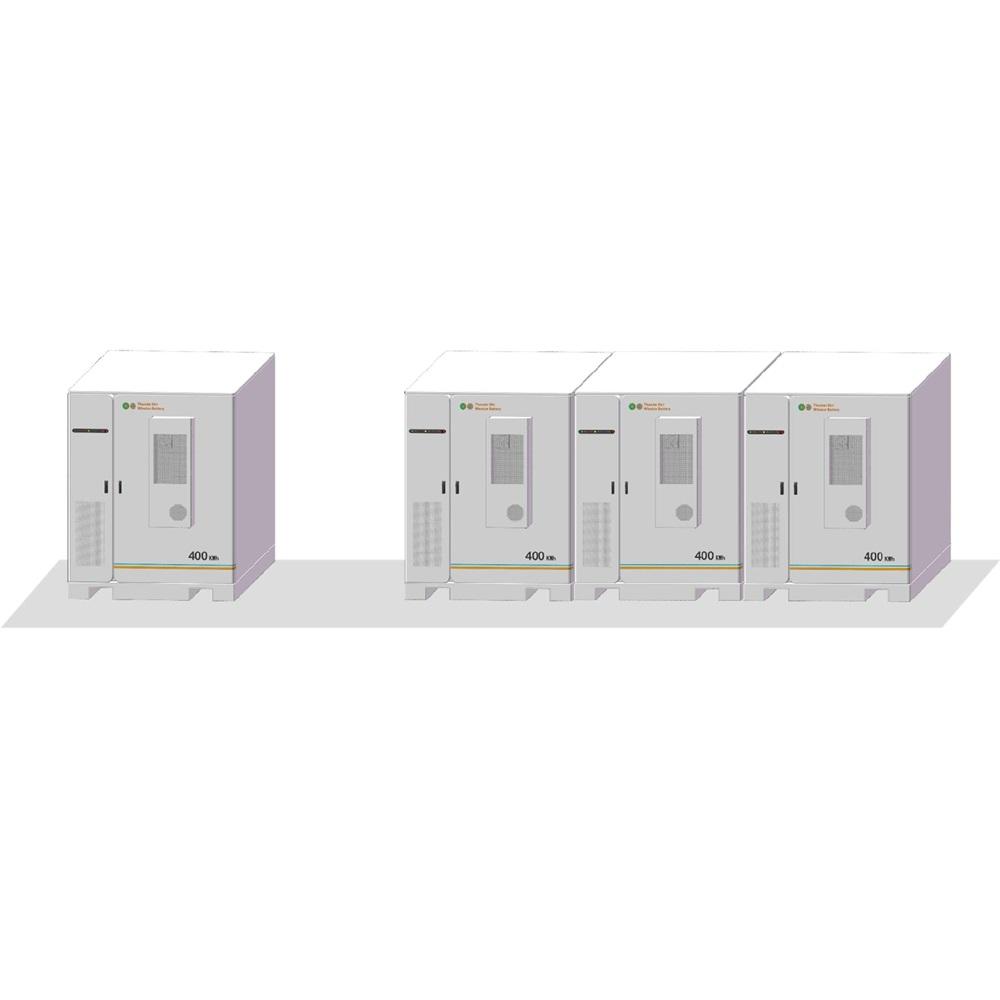

Thundersky Winston 768V 550ah 400kwh Industrial Large-capacity Water-based Lithium Battery Energy Storage Cabinet
Description
Water-based lithium yttrium battery cell, high temperature resistance and no explosion
IP56 protection for outdoor applications
C5 anti-corrosion, 20 years reliability
Independent fire protection system
Stand-alone thermal management system
Low self-discharge rate, long cycle life cell, service life of more than 20 years.
Integrated thermal management system, effectively control the temperature difference of the battery cell and improve the service life of the battery.
Modular design, compatible with 600-1000V systems
100~500Kw flexible expandable power module
Integrated independent EMS onpremise and cloud-based energy management systems
|
Main Parameters |
Specifications |
Remark |
|
Battery Type |
LYP |
Water-based lithium yttrium batteries |
|
Cabinet Type |
1P40S × 6 |
240pcs of cells |
|
Nominated Capacity |
550Ah |
/ |
|
Nominated Energy |
400Kwh |
/ |
|
DC voltage |
768V |
672~876V |
|
AC Voltage |
400V(-15%～+15%) |
50Hz/60Hz± 2.5Hz |
|
Charge-discharge Power |
125Kw |
Scalable |
|
Operating Temperature |
-25~75℃ |
/ |
|
Ingress Protection |
IP56 |
/ |
|
Cabinet Weight |
Around 6 Tons |
/ |
|
Cabinet Size |
2000 ×1300× 2550 |
L × D × H (mm) |
