Description

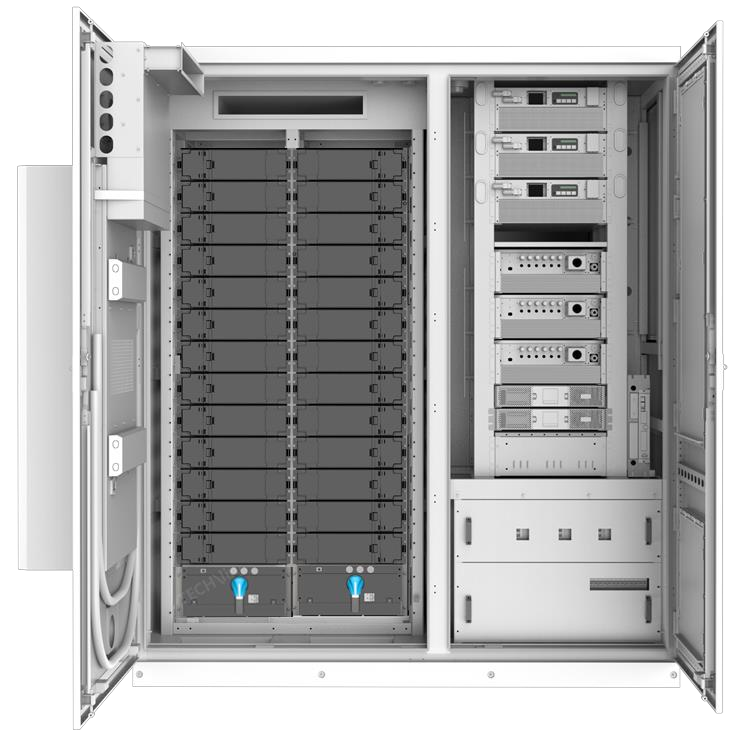

All-in-one Design：
• Fully Integrated with battery rack, PCS, PV inverters, EMS and power distribution unit; （3*PWS2-30P-NA, 3*PDS1-60K)
• Modular design, flexible function configuration:30kW133kWh,60kW133kWh
• Support peak shaving, off-grid, Solar-Storage-Diesel mode;
• Wide voltage range: 150V~750V, capacity configurable;
• STS can be added to achieve seamless switching;
Parameters：
|
Model |
SES-031-261 |
|
AC side data |
|
|
Nominal apparent power |
90kVA |
|
AC grid connection type |
3W+N |
|
Overload capability |
110%, continuous overloading |
|
Nominal AC voltage |
380/400/480 0(-15%~15%)Vac |
|
AC grid frequency |
50/60(-2.5~2.5) Hz |
|
THDi |
≤3% |
|
Power factor |
-1~1 |
|
Battery side data |
|
|
Max. Charge/Discharge power |
99kW |
|
Voltage range (PCS) |
150~750(350~750 fullload) Vdc |
|
Max. current (PCS) |
3*90A |
|
Battery voltage range |
582.4/~748.8V |
|
Battery configuration |
2P16S*13S*2P |
|
Battery energy capacity |
266.24kWh |
|
PV side data |
|
|
Nominal power |
135kW |
|
MPPT range |
200V~810V |
|
MPPT branch |
9 |
|
System data |
|
|
Dimension (WXHXD) |
1600×2450×1100 mm |
|
Weight |
2350kg |
|
Noise level |
<75dB |
|
Ingress protection class |
IP54 |
|
Operating ambient temperature |
-20~60°C(>45°C,derating) |
|
Cooling mode |
HVAC |
|
Operating ambient humidity |
0~100% (no condensing) |
|
Altitude |
3000m(>3000m, derating) |
|
Communication data |
|
|
Interface |
RS485, Ethernet, CAN |
|
Communication Protocol |
Modbus TCP/RTU |
