12V/24V backup battery pack for solar energy storage equipment

Details

The main advantages of lithium iron phosphate battery compared with lead acid 1. Long cycle life: lead-acid cycle life is 300-500 times, lithium iron phosphate can reach 2000 times; 2. High energy density: the energy density of the same

Details

Description

32700 Single Cell

No.	Project		Condition	Specification
1	Nominal capacity		1C discharge capacity	6.0Ah
2	AC internal resistance		Measured at 1000 Hz	≤8mΩ
3	Standard			3.2V
4	Cell size		Cell diameter	32.2 ± 0.3 mm Max 32.5 mm
4	Cell size		Cell height	70.5+0.4/-0.3 mm Max 70.9 mm
5	Cell weight		(Light body battery)	140±5g
6	Charging cut-off voltage		Constant current charging	3.65V
7	Charging cut-off current		Constant voltage charging	≤0.3A
8	charging method		Standard charging	≤1C at CC/CV
9	Discharge cut-off voltage		Constant current discharge	2.0V
10	Maximum continuous discharge current			18A
11	Maximum instantaneous discharge current			60A
12	Cycle performance		1C/100%DOD	≥2000 cycles
13	Operating temperature range	Charging temperature		0~60℃
		Discharge temperature		-20~60℃
		Storage temperature		-20~45℃

Backup Battery Pack / Equipment

The main advantages of lithium iron phosphate battery compared with lead acid

1. Long cycle life: lead-acid cycle life is 300-500 times, lithium iron phosphate can reach 2000 times;

2. High energy density: the energy density of the same volume of lithium batteries is 1.5 of that of lead-acid batteries;

3. Safe and convenient: The built-in BMS management system can achieve multiple functions while ensuring safety. Kind of external function application;

4. Fast charging and discharging rate: supports fast charging and fast discharging, which greatly saves charging time.

Main product model

12V series
(6Ah/20Ah/30Ah/35Ah/40Ah/50Ah/75Ah/90Ah/100Ah/120Ah/150Ah/200Ah) etc.

Main application scenarios

solar energy storage equipment and energy storage modules, RV energy storage equipment, backup/emergency power supplies, etc.

Product

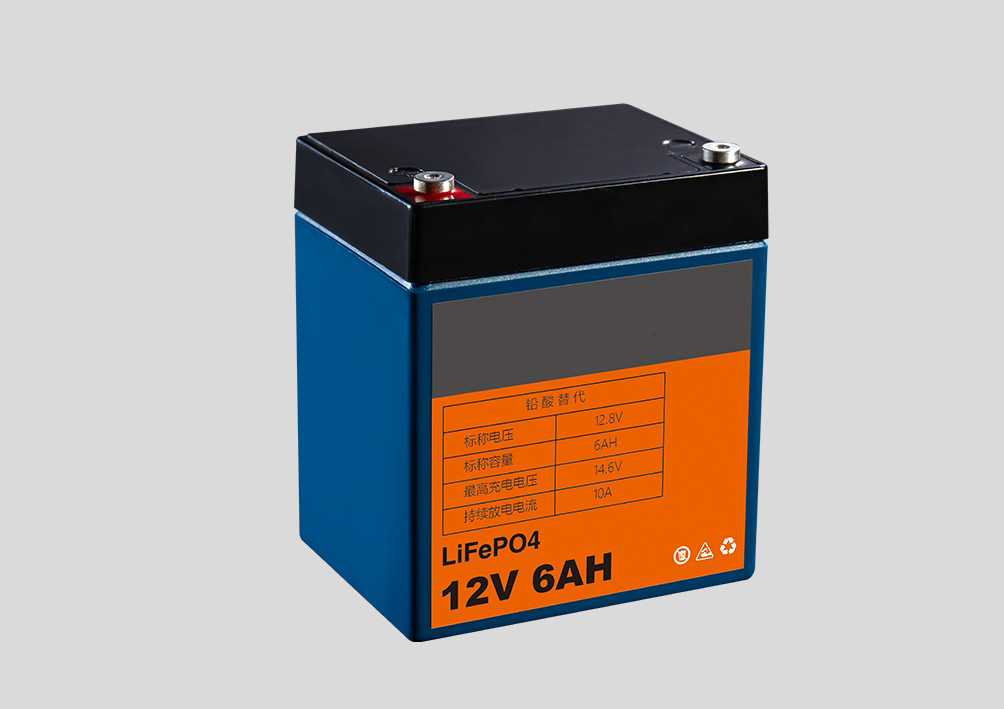

	12V 6AH Nominal voltage: 12.8V Nominal capacity: 6AH Maximum charging voltage: 14.6V Continuous discharge Current: 10A		12V 20AH Nominal voltage: 12.8V Nominal capacity: 20AH Maximum charging voltage: 14.6V Continuous discharge current: 20A

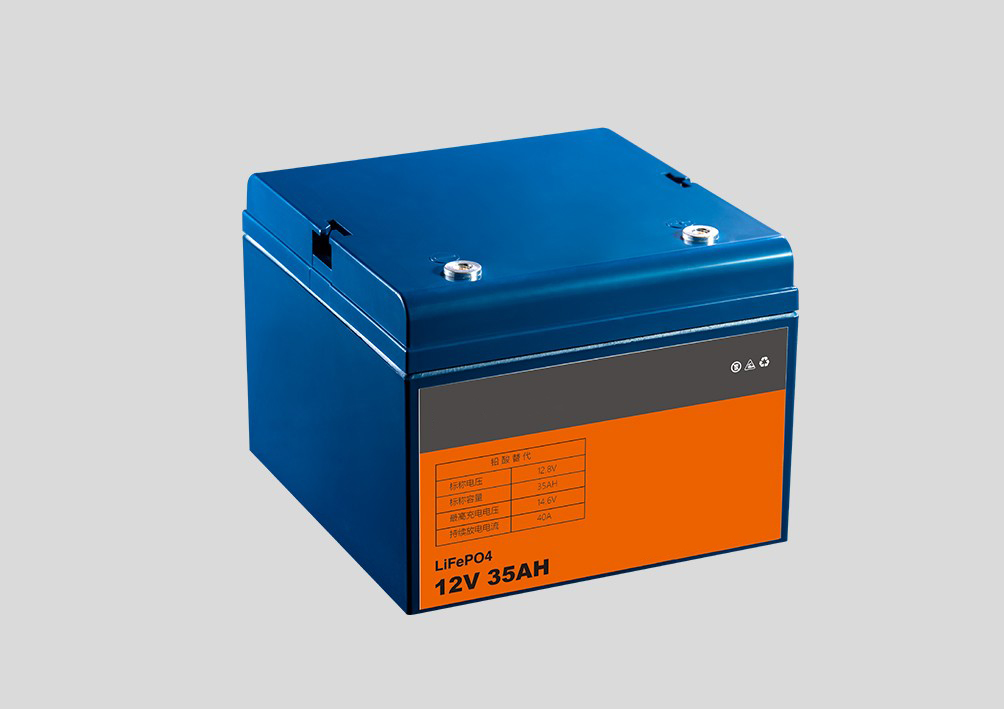

	12V 30AH Nominal voltage: 12.8V Nominal capacity: 30AH Maximum charging voltage: 14.6V Continuous discharge current: 30A		12V 35AH Nominal voltage: 12.8V Nominal capacity: 35AH Maximum charging voltage: 14.6V Continuous discharge current: 40A

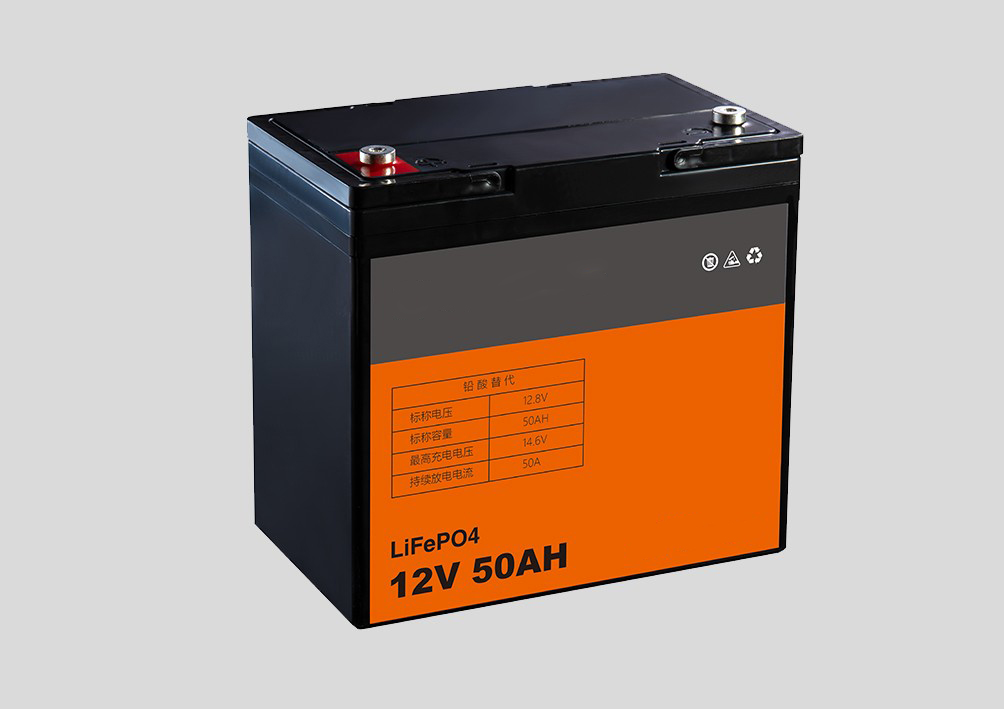

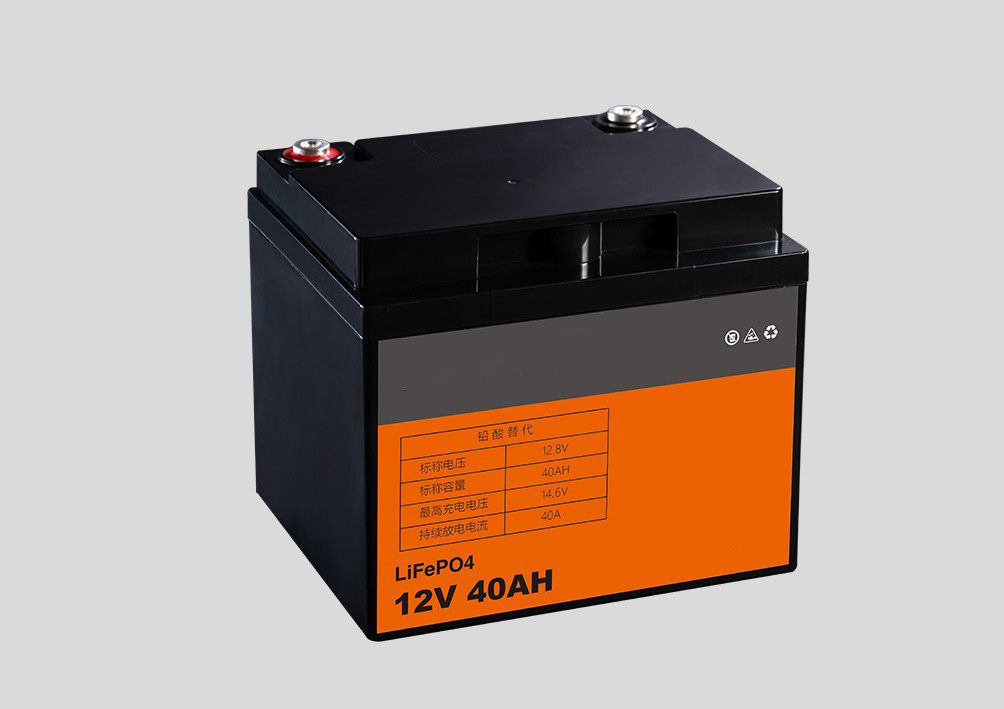

	12V 40AH Nominal voltage: 12.8V Nominal capacity: 40AH Maximum charging voltage: 14.6V Continuous discharge Current: 40A		12V 50AH Nominal voltage: 12.8V Nominal capacity: 50AH Maximum charging voltage: 14.6V Continuous discharge current: 50A

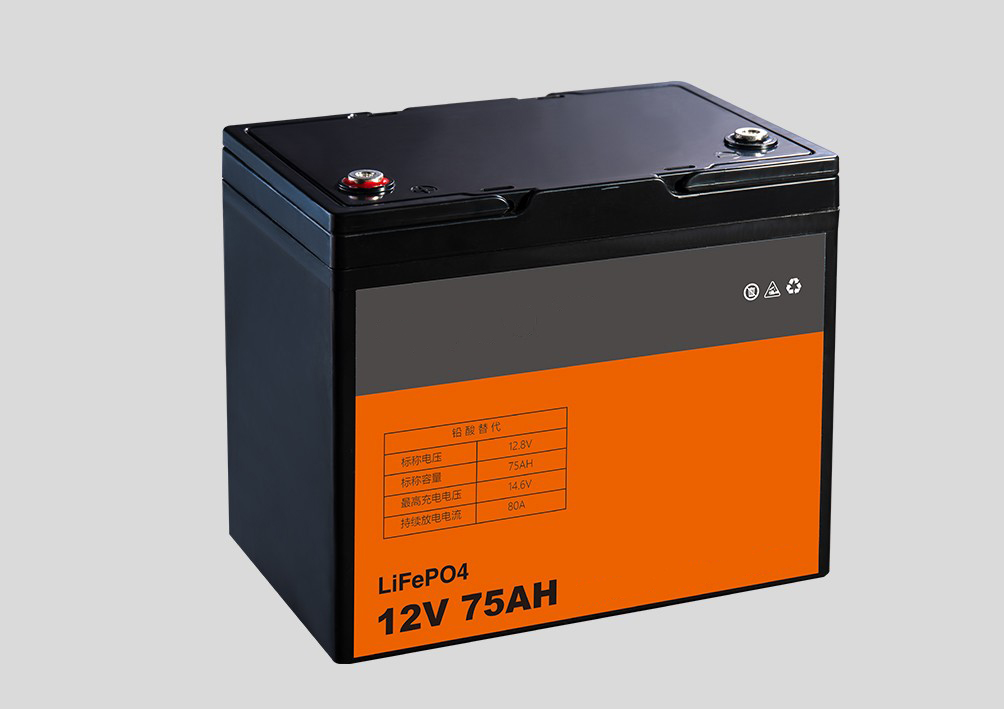

	12V 50AH (Bluetooth) Nominal voltage: 12.8V Nominal capacity: 50AH Maximum charging voltage: 14.6V Continuous discharge current: 50A		12V 75AH Nominal voltage: 12.8V Nominal capacity: 75AH Maximum charging voltage: 14.6V Continuous discharge current: 80A
	12V 90AH Nominal voltage: 12.8V Nominal capacity: 90AH Maximum charging voltage: 14.6V Continuous discharge Current: 90A		12V 100AH Nominal voltage: 12.8V Nominal capacity: 100AH Maximum charging voltage: 14.6V Continuous discharge current: 100A

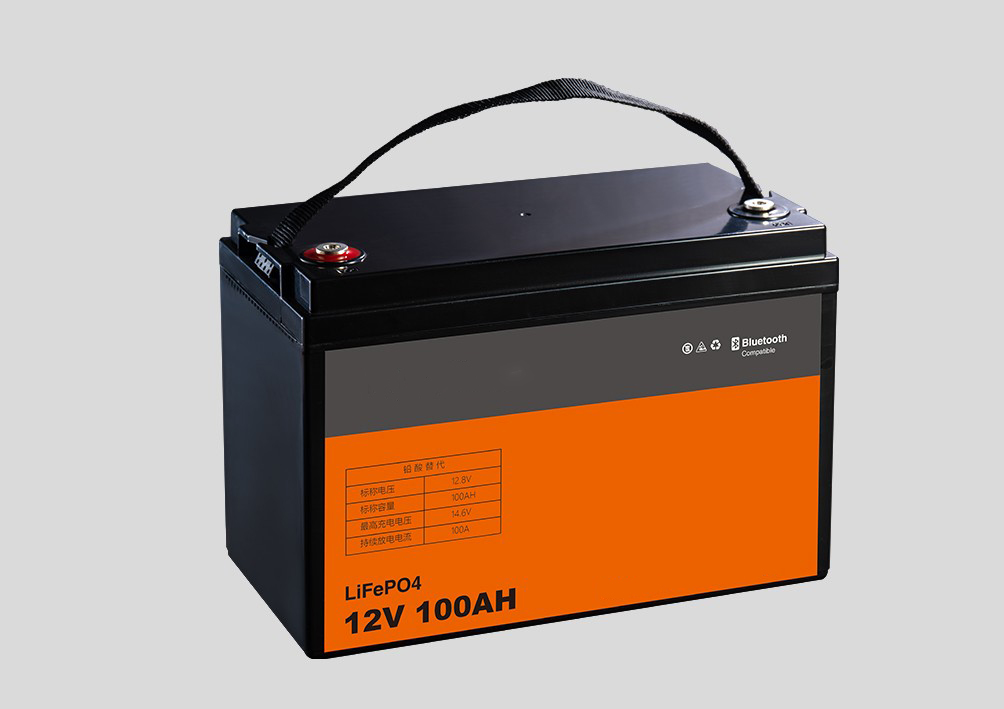

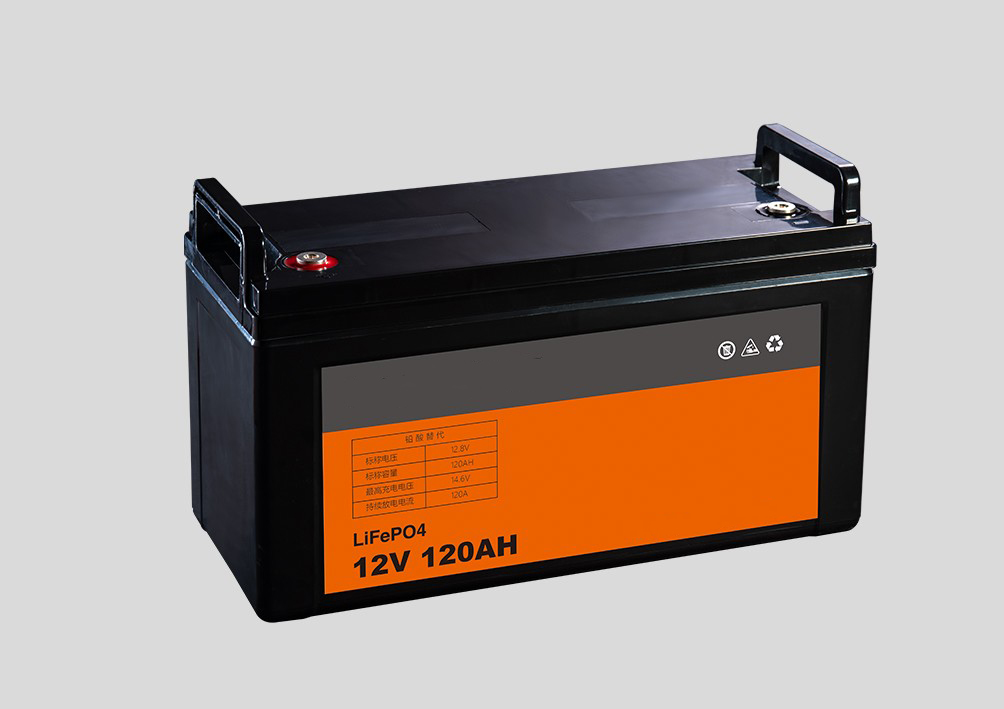

	12V 100AH (Bluetooth) Nominal voltage: 12.8V Nominal capacity: 100AH Maximum charging voltage: 14.6V Continuous discharge current: 100A		12V 120AH Nominal voltage: 12.8V Nominal capacity: 120AH Maximum charging voltage: 14.6V Continuous discharge current: 120A

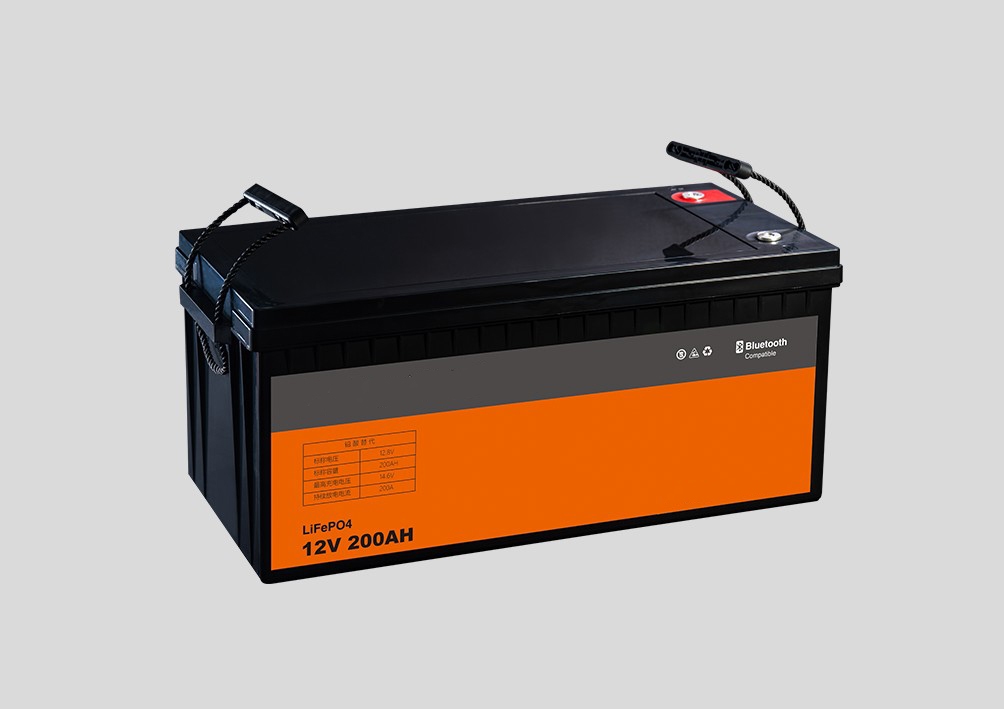

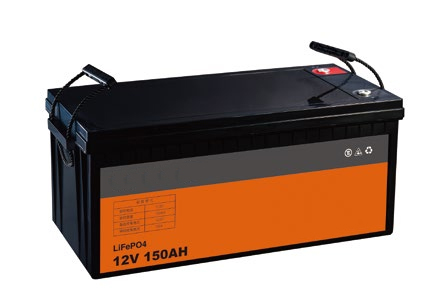

	12V 150AH Nominal voltage: 12.8V Nominal capacity: 150AH Maximum charging voltage: 14.6V Continuous discharge current: 150A		12V 200AH (Bluetooth) Nominal voltage: 12.8V Nominal capacity: 200AH Maximum charging voltage: 14.6V Continuous discharge current: 200A
