Details
Product features light weight, small size, high energy density, easy to carry, long cycle life of the battery pack, in line with the environmental value concept of low carbon and energy saving.
Description

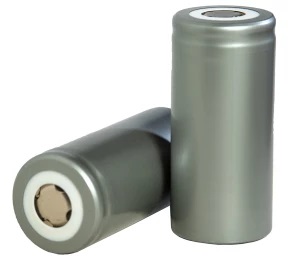

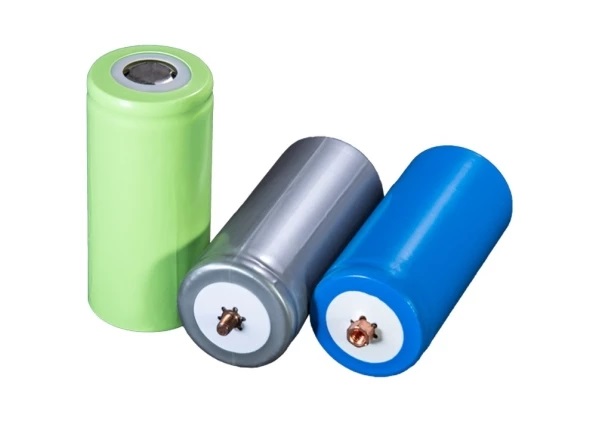

32700 single cell
| No. | Project | Condition | Specification | |
| 1 | Nominal capacity | 1C discharge capacity | 6.0Ah | |
| 2 | AC internal resistance | Measured at 1000 Hz | ≤8mΩ | |
| 3 | standard | 3.2V | ||
| 4 | Cell size | Cell diameter |
32.2 ± 0.3 mm Max 32.5 mm |
|
| Cell height |
70.5+0.4/-0.3 mm Max 70.9 mm |
|||
| 5 | Cell weight | (Light body battery) | 140±5g | |
| 6 | Charging cut-off voltage | Constant current charging | 3.65V | |
| 7 | Charging cut-off current | Constant voltage charging | ≤0.3A | |
| 8 | charging method | Standard charging | ≤1C at CC/CV | |
| 9 | Discharge cut-off voltage | Constant current discharge | 2.0V | |
| 10 | Maximum continuous discharge current | 18A | ||
| 11 | Maximum instantaneous discharge current | 60A | ||
| 12 | Cycle performance | 1C/100%DOD | ≥2000 cycles | |
| 13 | Operating temperature range | Charging temperature | 0~60℃ | |
| Discharge temperature | -20~60℃ | |||
| Storage temperature | -20~45℃ | |||
 |

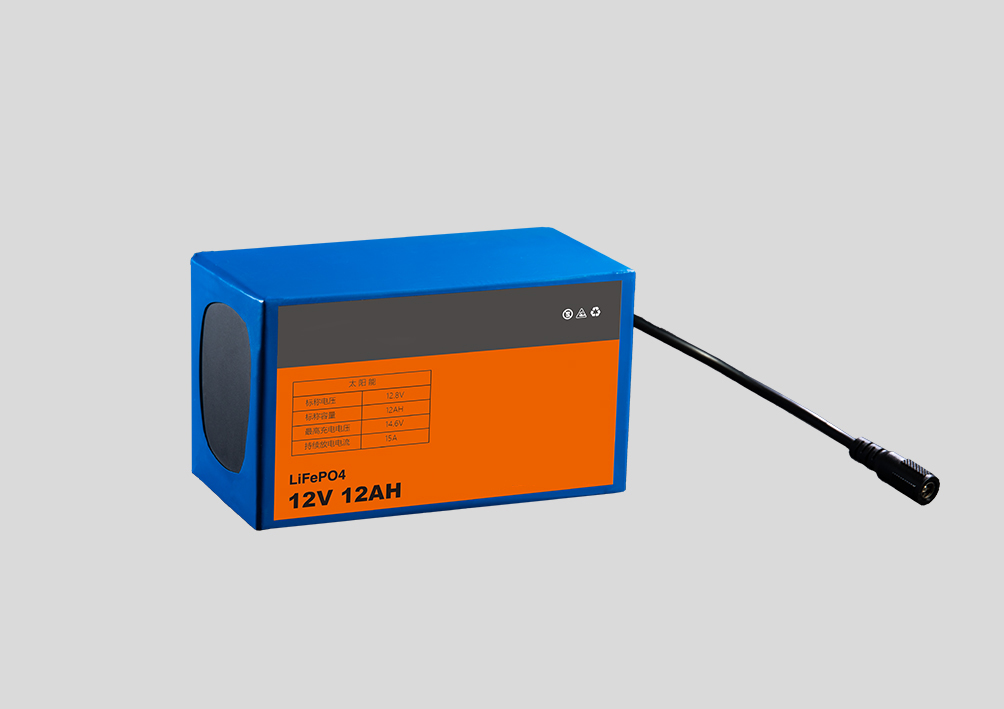

12V 12AH Nominal voltage: 12.8V Nominal capacity: 12AH Maximum charging voltage: 14.6V Continuous discharge Current: 15A |
 |

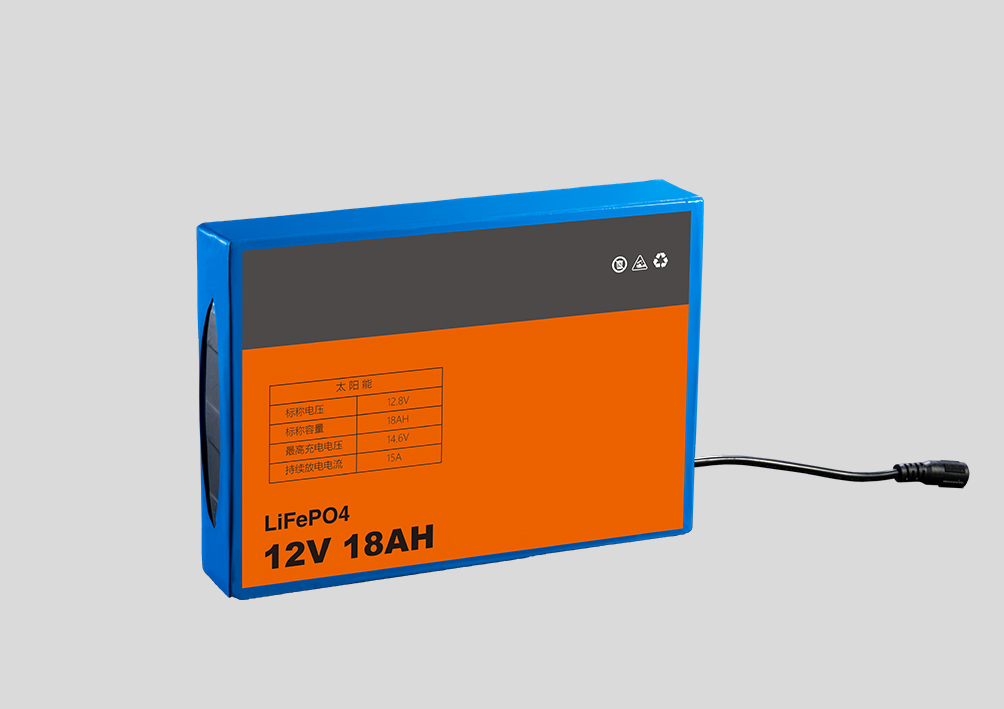

12V 18AH Nominal voltage: 12.8V Nominal capacity: 18AH Maximum charging voltage: 14.6V Continuous discharge current: 15A |
 |

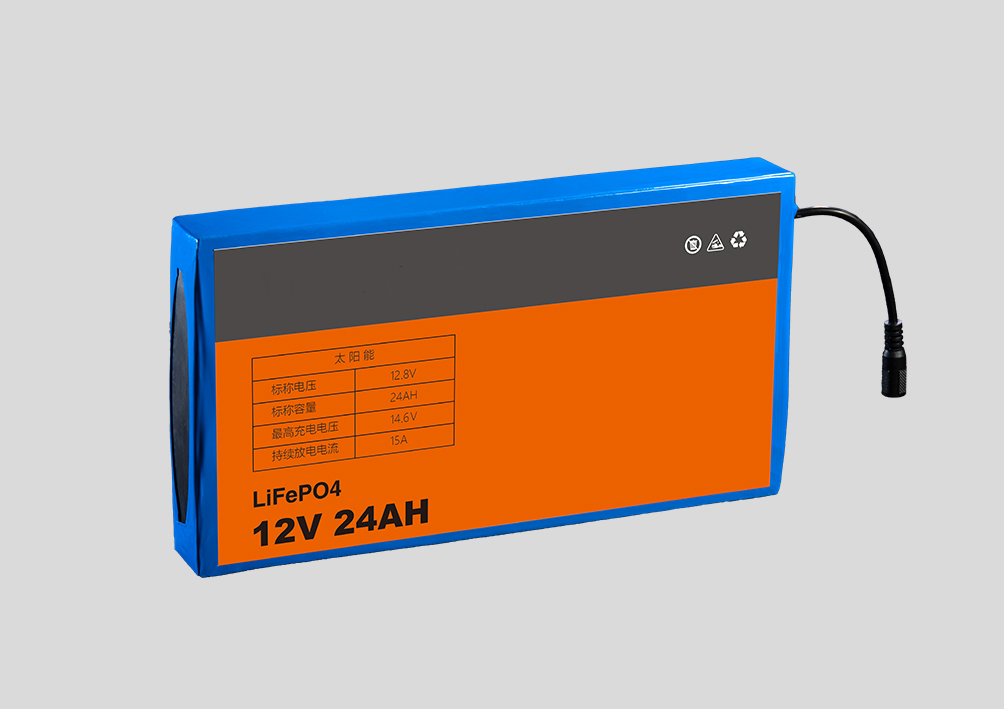

12V 24AH Nominal voltage: 12.8V Nominal capacity: 24AH Maximum charging voltage: 14.6V Continuous discharge current: 15A |
 |

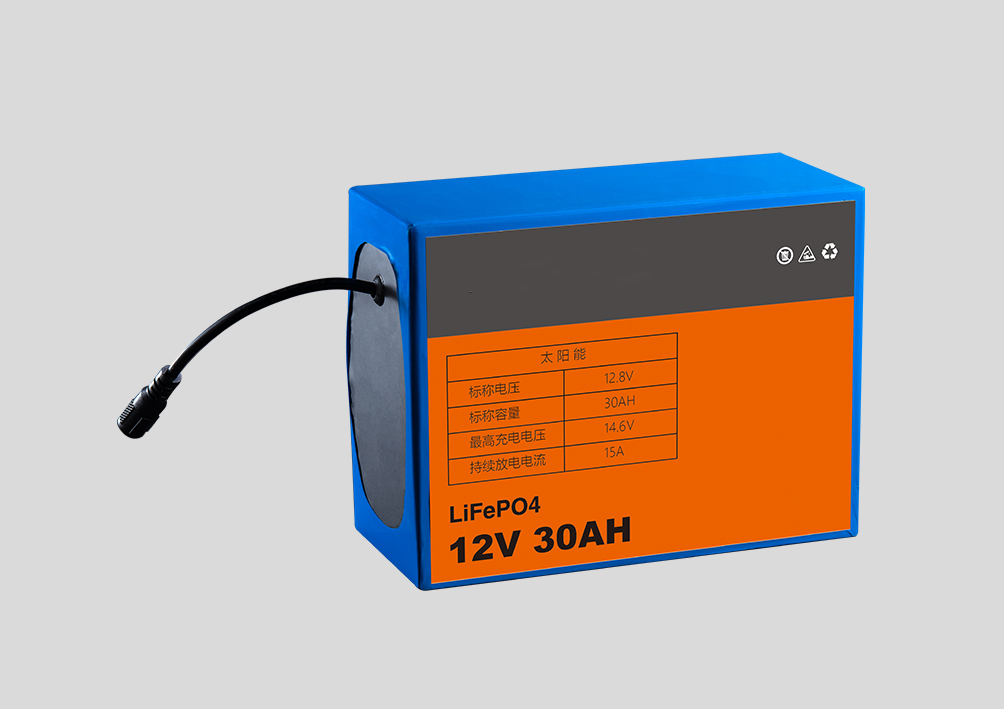

12V 30AH Nominal voltage: 12.8V Nominal capacity: 30AH Maximum charging voltage: 14.6V Continuous discharge current: 15A |
 |

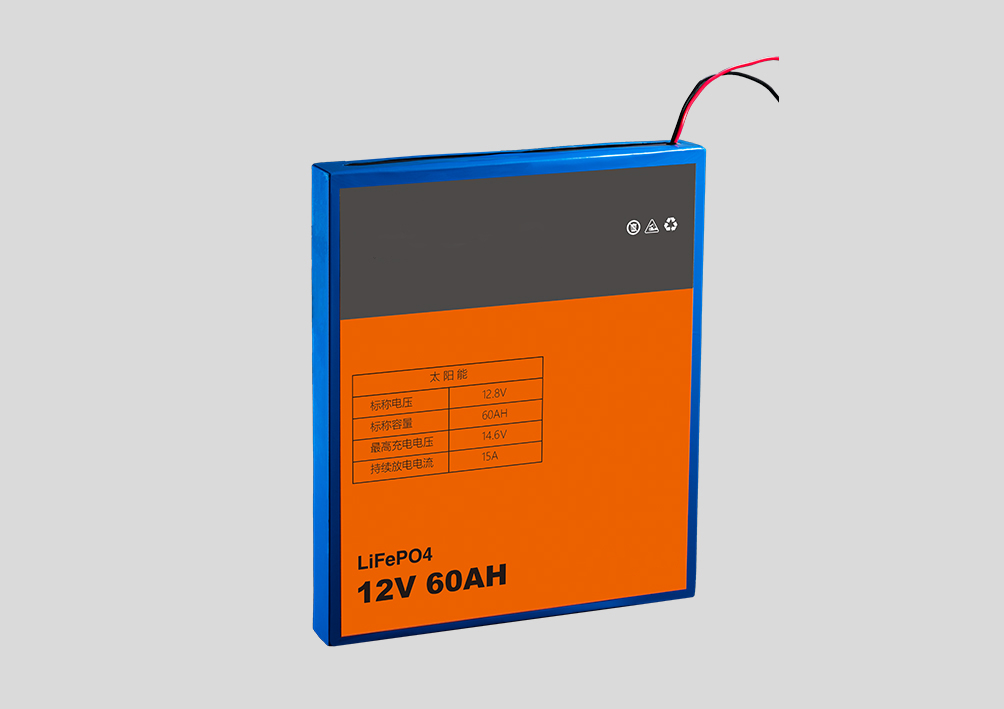

12V 60AH Nominal voltage: 12.8V Nominal capacity: 60AH Maximum charging voltage: 14.6V Continuous discharge current: 15A |
 |

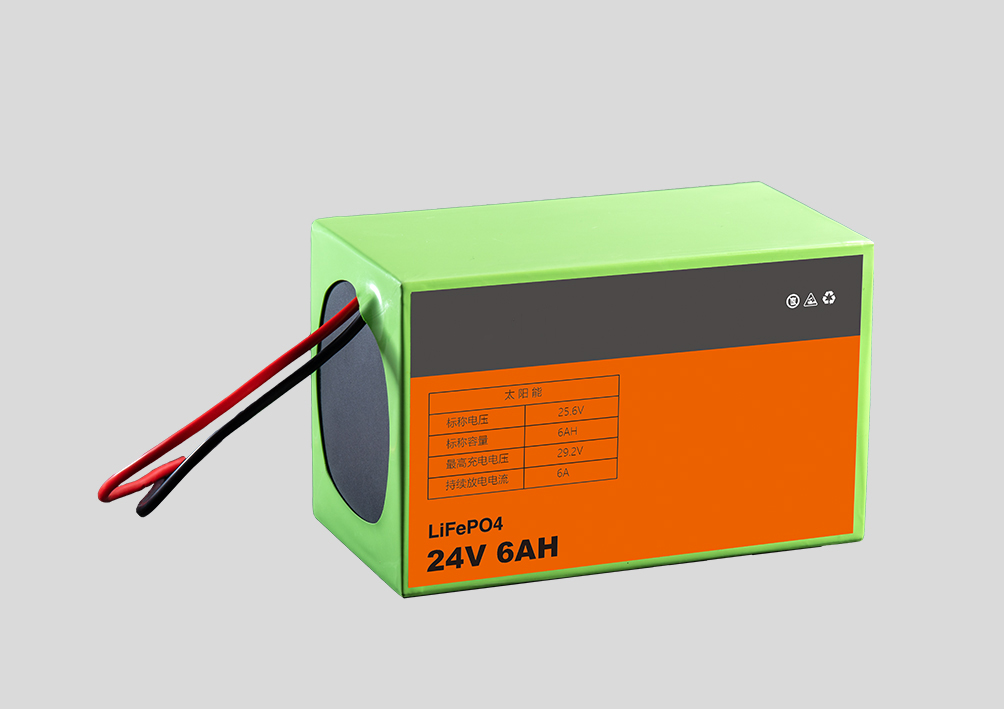

24V 6AH Nominal voltage: 25.6V Nominal capacity: 6AH Maximum charging voltage: 26.2V Continuous discharge current: 6A |
