5KWH wall-mounted lifepo4 Home energy storage battery

  • 5KWH wall-mounted battery energy storage system
  • 5KWH wall-mounted battery energy storage system
  • 5KWH wall-mounted battery energy storage system

Details

Energy storage systems (BESS) Containers are made for public buildings, neighborhoods, medium-sized to large-sized businesses, utility-scale storage systems, off-grid systems, electric mobility, and backup systems. Containers for the energy storage sy

Description

We focuses on intelligent energy storage services adopts advanced international energy storage technology to provide safe and reliable energy storage system containers and services for global users.

The energy storage battery Containers are built on a modular structure. We can customize them to match the capacity and power requirements of the client's needs. The energy storage systems for batteries are built on the standard container for sea freight starting at the kWh/kW (single container) up to MW/MWh (combining multiple containers). The containerized energy storage system permits quick installation, secure operation and is controlled by environmental conditions.

Energy storage systems (BESS) Containers are made for public buildings, neighborhoods, medium-sized to large-sized businesses, utility-scale storage systems, off-grid systems, electric mobility, and backup systems. Containers for the energy storage system allow you to store the energy generated through wind turbines, photovoltaics, or CHP. Because of its long duration of use, the containers for energy storage are also utilized for peak shaving, which reduces the power expense.
5kw battery energy storage system

Product Description


Technical Specifications
Battery Type LiFePO4(LFP)
Nominal Voltage(V) 51.2V
Nominal Energy(KWH) 5.12KWH
Design Capacity 100AH
Design Years 15 Years
Product Size
Size 600*510*173mm
Weight 51kg
Technical Parameter
Cycle Life ≥6000 80% DOD
Operating Voltage Range 40V-58.4V
Charging Voltage DC 58.4V
Charge/Discharge Current(A) Same Port 100A
Internal Resistance ≤30mΩ
BMS Parameters
Self-Consumption ≤2W
Rated Voltage 51.2V
Balance Current 30-65(MA)
Communication Method CAN/RS485/RS232
Information Storage 500 Strip
Limiting 10/20A(Optional)
Ambient Temperature
Operating Temperature -10°C-50°C
Storage Temperature 10°C-50°C
Humidity 15%-75%
Warranty
Warranty 5 Years


Advantage

Smart

Each module is equipped with an independent BMS system

Easy Installation

Just Plug & Play

Safe

Safe lithium iron phosphate battery cell

Certifications

CE IEC UN38.3 MSDS

Modular

Modular expansion

Longer Lifetime

6000 cycles, 15 years design life

Lithium battery systems are widely used in residential energy storage systems, such as solar energy storage systems and UPS. The power wall LiFePO4 battery pack adopts the international advanced lithium iron phoaphate battery application technology and BMS control technology.

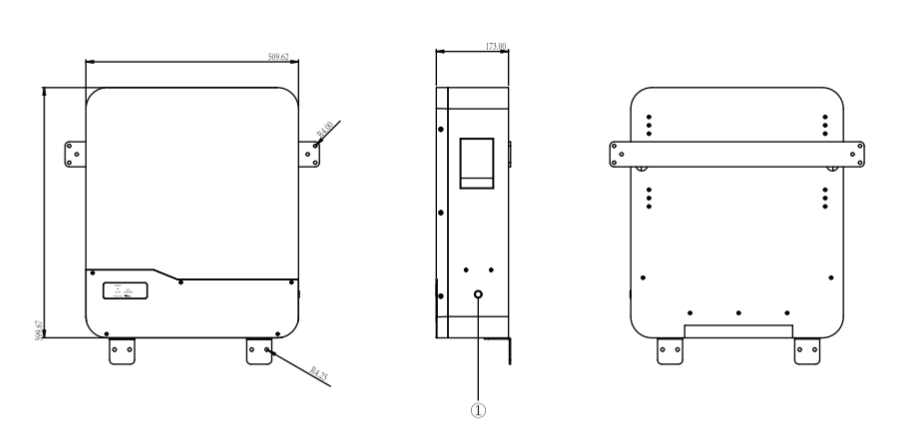

Product Size

5kw battery energy storage system


Product Interface

5kw battery energy storage system
5kw battery energy storage system


Parallel Connection Of Batteries

Connect the positive pole and positive pole in parallel, and the negative pole and negative pole in parallel, as shown in the figure below

5kw battery energy storage system


Solution Diagram

5kw battery energy storage system


Accessories: (Optional)

5kw battery energy storage system
