C&I Products - Cell
Battery Module
Security Design
➢ Connection detection
➢ Module short circuit protection
Maintenance Convenience Design
➢ Pre-maintenance interface, first-level BMS and Fuse
maintenance, without tools.
Concise Interface Design
➢ Hidden wiring harness design
Compatibility Design
➢ Module 3U, suitable for 19-inch cabinet
➢ Electrical selection compatible with 1000-1500V
High Voltage Box
Integrated Design
➢ HVB (BMS Control Box) includes BCU, IVU, can support expandable BAMS, ESU, and
also adds 24VDC, which can support black start.
➢ Maintenance Convenience Design
➢ Modular PCBA design with convenient expansion for level 2 and 3 (BAMS/ESU).
➢ Hot plug design, PCBA convenience maintenance.
Safety/Reliability Design
➢ Electronics/electrical components are easy to replace, 24VDC dual power backup,
improving system reliability.
➢ Insulation detection, loose connection detection.
Compatibility Design
➢ Module 3U, suitable for 19-inch cabinet
➢ Electrical selection compatible with 1000-1500V

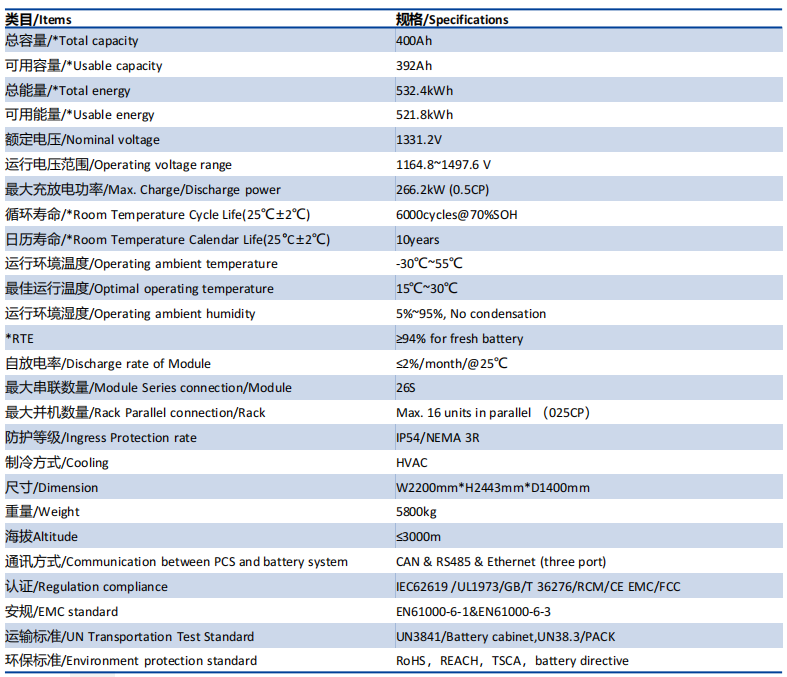

Outdoor Battery Cabinet
➢ Each battery cabinet contains 2 sets of battery packs, and each battery pack can contain up to 26 serially connected battery cells.
➢ Each battery cabinet is equipped with 2 HVACs and 1 set of aerosol fire suppression system (FFS).
➢ 025CP is equipped with a 3kW air conditioner, while 05CP is equipped with a 5kW air conditioner.
